DESCRIPTION:
Make: HELI
Model: CPD30-GA2CLI
Serial: 05030DG3993
Unit number: L-1042
Model year: 2022
Capacity (lbs): 6000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 189.0
Lowered mast height (in): 90.0
Free lift (in): 46.0

TIRES:
Pneumatic on drive wheels 21X8X15
Pneumatic on steering wheels 16X6X10.5

DIMENSIONS:
Overall lenght (in): 91.4
Overall width (in): 44.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.7
Outside turning radius (in exterior): 79.6

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lithium
System voltage: 48
Battery capacity (ah): 542

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: Yes
Fork lenght (in): 48
Non marking tires: Yes

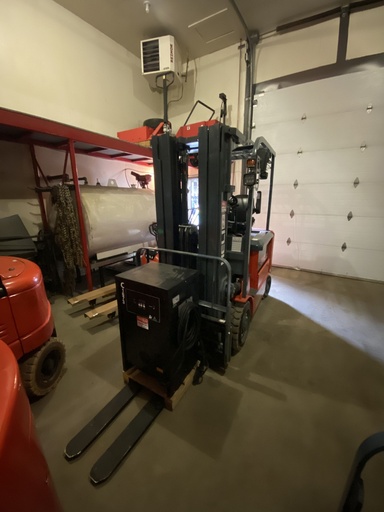

DESCRIPTION:
Make: HELI
Model: CPD25-GA2CLI
Serial: 05025DK4758
Unit number: L-1673
Model year: 2023
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 4 stages
Maximum forks height (in): 240.5
Lowered mast height (in): 84.5
Free lift (in): 47.0

TIRES:
Pneumatic on drive wheels 21X7X15
Pneumatic on steering wheels 16X6X10.5

DIMENSIONS:
Overall lenght (in): 85.2
Overall width (in): 42.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.7
Outside turning radius (in exterior): 73.0

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lithium
System voltage: 80
Battery capacity (ah): 404

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: Yes
Fork lenght (in): 42
Non marking tires: No

DESCRIPTION:
Make: HELI
Model: CPD25-GA2CLI
Serial: 05025DL1547
Unit number: L-2389
Model year: 2023
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 189.0
Lowered mast height (in): 86.0
Free lift (in): 45.6

TIRES:
Pneumatic on drive wheels 21X7X15
Pneumatic on steering wheels 16X6X10.5

DIMENSIONS:
Overall lenght (in): 85.2
Overall width (in): 42.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.7
Outside turning radius (in exterior): 73.0

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lithium
System voltage: 80
Battery capacity (ah): 404

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: Yes
Fork lenght (in): 42
Non marking tires: Yes

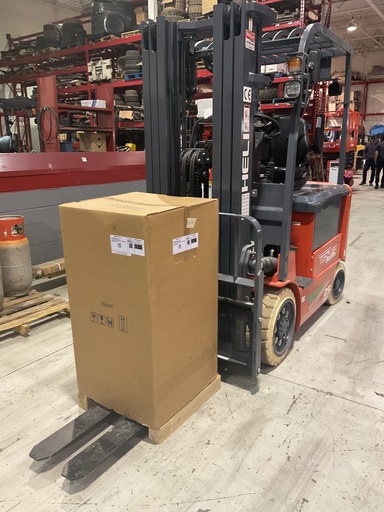

DESCRIPTION:
Make: HELI
Model: CPD25-GA2CLI
Serial: 05025DL1548
Unit number: L-2391
Model year: 2023
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 189.0
Lowered mast height (in): 86.0
Free lift (in): 45.6

TIRES:
Pneumatic on drive wheels 21X7X15
Pneumatic on steering wheels 16X6X10.5

DIMENSIONS:
Overall lenght (in): 85.2
Overall width (in): 42.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.7
Outside turning radius (in exterior): 73.0

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lithium
System voltage: 80
Battery capacity (ah): 404

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: No
Fork lenght (in): 42
Non marking tires: Yes

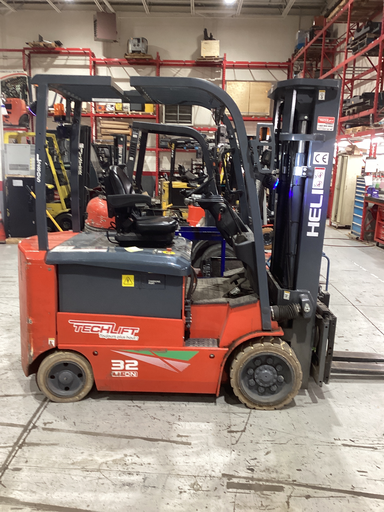

DESCRIPTION:
Make: HELI
Model: CPD32-GA2CLI
Serial: 05032DL2205
Unit number: L-2805
Model year: 2024
Capacity (lbs): 6500
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 189.0
Lowered mast height (in): 90.0
Free lift (in): 46.0

TIRES:
Pneumatic on drive wheels 21X8X15
Pneumatic on steering wheels 16X6X10.5

DIMENSIONS:
Overall lenght (in): 92.2
Overall width (in): 44.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.7
Outside turning radius (in exterior): 80.2

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lithium
System voltage: 80
Battery capacity (ah): 542

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: No
Fork lenght (in): 48
Non marking tires: Yes

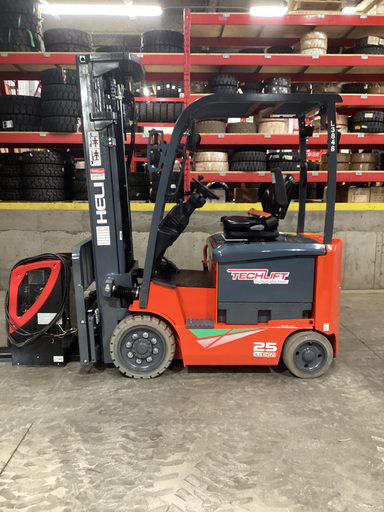

DESCRIPTION:
Make: HELI
Model: CPD25-GA2CLI
Serial: 05025DE6590
Unit number: L-3848
Model year: 2021
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 4 stages
Maximum forks height (in): 295.0
Lowered mast height (in): 101.0
Free lift (in): 63.0

TIRES:
Pneumatic on drive wheels 21X7X15
Pneumatic on steering wheels 16X6X10.5

DIMENSIONS:
Overall lenght (in): 85.2
Overall width (in): 42.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.7
Outside turning radius (in exterior): 73.0

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lithium
System voltage: 48
Battery capacity (ah): 542

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: No
Fork lenght (in): 42
Non marking tires: Yes

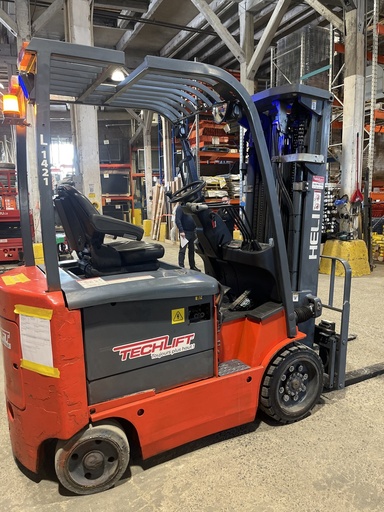

***DESCRIPTION***
Marque: HELI
Modèle: CPD25-GA2CLI
Capacité: 5000 lbs
Mât: 88x256(4)
Heures:
Année: 2022
Longueur des fourches: 48 x 4 x 1.5 po
Déplacement latéral des fourches
CONNECTEUR: EURO320

***SPÉCIFICATIONS***
Voltage système électrique: 48V
Hauteur du mât en position fermée: 88 po
Hauteur maximale des fourches: 256 po
Hauteur hors tout du chariot: 88 po
Mât de type: levée libre complète
Nombre de sections du mât: 4
Largeur du tablier: 39.5 po
Largeur du chariot : 42.5 po
Longueur du chariot (de l'arrière à l'avant des fourches): 89 po
Dimension compartiment à batterie: longueur: 39.25 largeur: 30.70 hauteur: 24.60
Poids à vide sans batterie: 8444 lbs
Poids minimum de la batterie: 2601 lbs
Poids maximum de la batterie: 3527 lbs

***CARACTÉRISTIQUES***
Système électrique: transistorisé
Compteur d'heures
Indicateur de décharge de la batterie
Moteur de traction: AC / DC ?????
Moteur de levée: AC / DC ?????
Connecteur à batterie de type: euro ampérage: 320 couleur: noir

Tablier pour fourches à crochets de classe: 2
Dimensions des fourches longueur: 48, largeur: 4, épaisseur: 1.75 po
Dosseret de charge : hauteur: 39 po
Nombre de fonction(s) hydraulique(s) total: 4
Nombre de fonction(s) auxiliaire(s) au tablier: interne: 2
Inclinaison du mât avant et arrière

Pneu avant: bandage plein
Composition du pneu avant: caoutchouc noir
Type de traction des pneus avant: traction
Dimension pneu avant: 21x8x15
Pneu arrière: bandage plein
Composition du pneu arrière: caoutchouc noir
Type de traction des pneus arrière: lisse
Dimension pneu(s) arrière: 16x6x10.5

Avertisseur sonore: reculons
Dispositif de retenue du siège de l'opérateur: épaule
Ceinture de sécurité
Siège à suspension
Colonne de direction inclinable
Contrôle avant reculons: bras sélecteur
Frein de stationnement: à main
Lumière à frein
Lumière blanche de marche arrière
Lumière clignotante de direction orange avant et arrière
Lumière de travail avant
Lumière de travail arrière
Lumière stroboscopique de couleur ambre
Lumière bleu avant
Miroir de reculons
Poignée arrière avec klaxon
Boule au volant
Goupille de remorquage

***CARACTÉRISTIQUES DE PERFORMANCE ET CAPACITÉ***
Capacité nette avec centre de charge à 24 po à pleine hauteur: 2315 lbs
