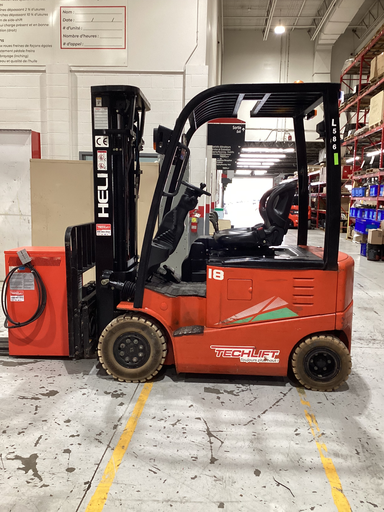

DESCRIPTION:
Make: HELI
Model: CPD18-GD1LI
Serial: 050181L0634
Unit number: L-586
Model year: 2016
Capacity (lbs): 3500
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 185.0
Lowered mast height (in): 85.0
Free lift (in): 44.9

TIRES:
Pneumatic on drive wheels 600X9
Pneumatic on steering wheels 16X6-8

DIMENSIONS:
Overall lenght (in): 81.5
Overall width (in): 42.8
Overhead guard height (in): 83.9
Groud clearance from chassis (in): 3.1
Outside turning radius (in exterior): 68.9

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lead-acid
System voltage: 48
Battery capacity (ah): 645

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: Yes
Fork lenght (in): 42
Solid pneumatic tires non marking: Yes
Steel cab with heater and wiper: No

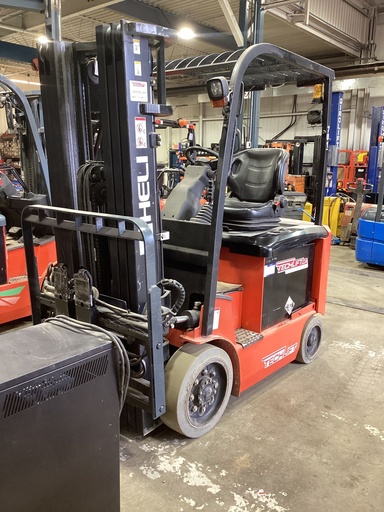

DESCRIPTION:
Make: HELI
Model: CPD25-GA2C
Serial: 050251M6559
Unit number: L-701
Model year: 2016
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 189.0
Lowered mast height (in): 86.0
Free lift (in): 45.6

TIRES:
Pneumatic on drive wheels 21X7X15
Pneumatic on steering wheels 16X6X10.5

DIMENSIONS:
Overall lenght (in): 85.2
Overall width (in): 42.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.7
Outside turning radius (in exterior): 73.0

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lead-acid
System voltage: 48
Battery capacity (ah): 780

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: No
Fork lenght (in): 42
Non marking tires: Yes

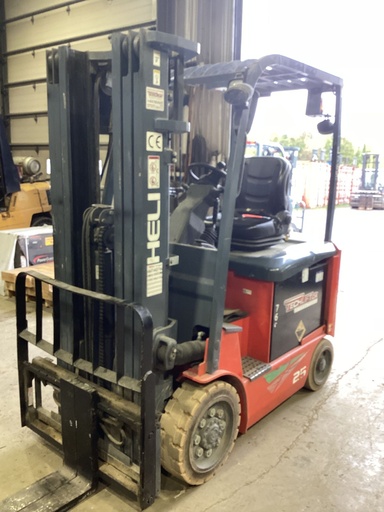

DESCRIPTION:
Make: HELI
Model: CPD25-GA2C
Serial: 05025DB6130
Unit number: L-769
Model year: 2018
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 189.0
Lowered mast height (in): 86.0
Free lift (in): 45.6

TIRES:
Pneumatic on drive wheels 21X7X15
Pneumatic on steering wheels 16X6X10.5

DIMENSIONS:
Overall lenght (in): 85.2
Overall width (in): 42.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.7
Outside turning radius (in exterior): 73.0

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lead-acid
System voltage: 48
Battery capacity (ah): 780

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 3
Hydraulic internal hosing: Single
Sideshifter: Yes
Fork positioner: No
Fork lenght (in): 42
Non marking tires: Yes

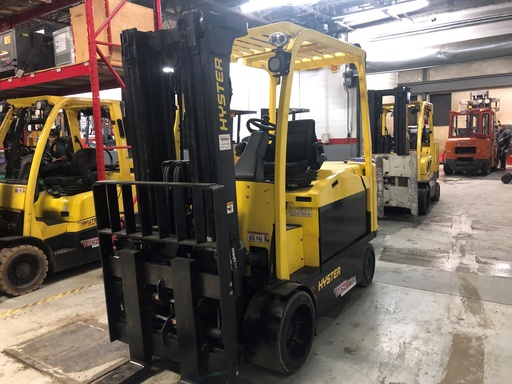

Capacité 12 000 LBS
Marque HYSTER
Modèle E120XN
Série A099N01664L
Année 2013
Alimentation ELECTRIQUE-3 ROUES
Pneus SOLIDES
Cabine NON
Mat 3 SECTIONS
Mât abaissé 92"
Levage Max 185"
Fourches 48"
Attachement POSITIONNEUR S/S
Fonction hydraulique 4 VALVES
Batterie 80V / NEUVE
Chargeur NEUF
Poids 20 540 LBS
Longueur 112"
Largeur 56"
Hauteur 92"

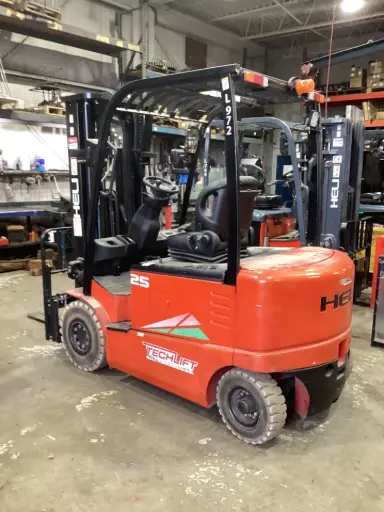

DESCRIPTION:
Make: HELI
Model: CPD25-GD1LI
Serial: 050251K3704
Unit number: L-972
Model year: 2016
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 185.0
Lowered mast height (in): 85.0
Free lift (in): 45.7

TIRES:
Pneumatic on drive wheels 23X9-10
Pneumatic on steering wheels 18X7-8

DIMENSIONS:
Overall lenght (in): 89.8
Overall width (in): 46.6
Overhead guard height (in): 84.6
Groud clearance from chassis (in): 4.3
Outside turning radius (in exterior): 79.1

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lead-acid
System voltage: 48
Battery capacity (ah): 700

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: No
Fork lenght (in): 42
Solid pneumatic tires: Yes
Steel cab with heater and wiper: No

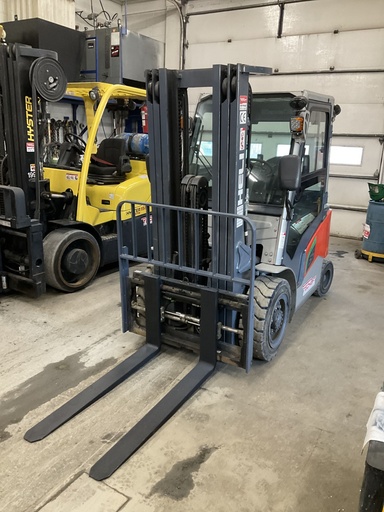

DESCRIPTION:
Make: HELI
Model: CPD35-GB2LI-H
Serial: 05035DF5163
Unit number: L-987
Model year: 2021
Capacity (lbs): 7000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 185.0
Lowered mast height (in): 88.0
Free lift (in): 39.4

TIRES:
Pneumatic on drive wheels 28X9X15
Pneumatic on steering wheels 200/50-10

DIMENSIONS:
Overall lenght (in): 101.3
Overall width (in): 48.2
Overhead guard height (in): 85.8
Groud clearance from chassis (in): 5.1
Outside turning radius (in exterior): 87.2

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lithium
System voltage: 80
Battery capacity (ah): 404
On-board charger 110V/220V: No

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: Yes
Fork lenght (in): 48
Solid pneumatic tires Yes
Steel cab with heater and wiper Yes

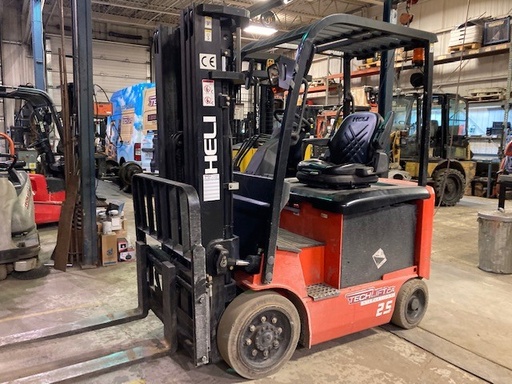

DESCRIPTION:
Make: HELI
Model: CPD25-GA2C
Serial: 050251M6560
Unit number: LT-984
Model year: 2017
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 189.0
Lowered mast height (in): 86.0
Free lift (in): 45.6

TIRES:
Pneumatic on drive wheels 21X7X15
Pneumatic on steering wheels 16X6X10.5

DIMENSIONS:
Overall lenght (in): 85.2
Overall width (in): 42.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.7
Outside turning radius (in exterior): 73.0

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lead-acid
System voltage: 48
Battery capacity (ah): 780

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: No
Fork lenght (in): 42
Non marking tires: Yes

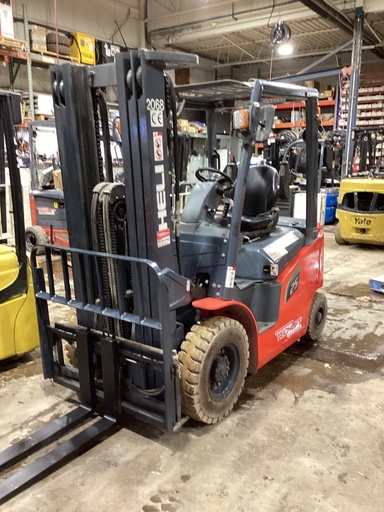

DESCRIPTION:
Make: HELI
Model: CPD25-GB2LI-M
Serial: 05025DF7152
Unit number: SH-2068
Model year: 2022
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 185.0
Lowered mast height (in): 85.0
Free lift (in): 45.7

TIRES:
Pneumatic on drive wheels 700X12
Pneumatic on steering wheels 18X7-8

DIMENSIONS:
Overall lenght (in): 95.7
Overall width (in): 45.7
Overhead guard height (in): 85.4
Groud clearance from chassis (in): 4.5
Outside turning radius (in exterior): 81.5

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lithium
System voltage: 80
Battery capacity (ah): 271
On-board charger 110V/220V: No

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: No
Fork lenght (in): 42
Solid pneumatic tires non marking Yes
Steel cab with heater and wiper No

DESCRIPTION:
Make: HELI
Model: CPD30-GA2CLI
Serial: 05030DG3993
Unit number: L-1042
Model year: 2022
Capacity (lbs): 6000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 189.0
Lowered mast height (in): 90.0
Free lift (in): 46.0

TIRES:
Pneumatic on drive wheels 21X8X15
Pneumatic on steering wheels 16X6X10.5

DIMENSIONS:
Overall lenght (in): 91.4
Overall width (in): 44.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.7
Outside turning radius (in exterior): 79.6

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lithium
System voltage: 48
Battery capacity (ah): 542

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: Yes
Fork lenght (in): 48
Non marking tires: Yes

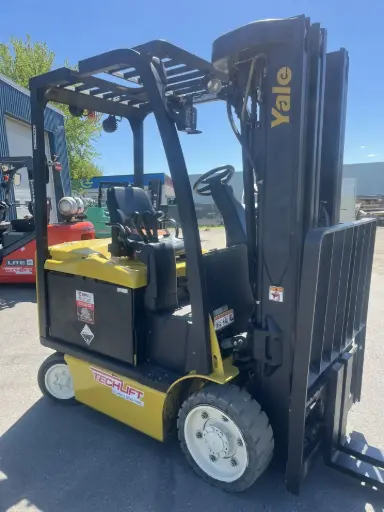

DESCRIPTION:
Make: YALE
Model: ERC050VGN48TQ088/252
Serial: A968N15642P
Unit number: L-571
Model year: 2016
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 4 stages
Maximum forks height (in): 252.0
Lowered mast height (in): 88.0
Free lift (in): 39.0

TIRES:
Pneumatic on drive wheels 21X7X15
Pneumatic on steering wheels 16X5X10.5

DIMENSIONS:
Overall lenght (in): 84.3
Overall width (in): 42.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.6
Outside turning radius (in exterior): 74.2

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lead-acid
System voltage: 48
Battery capacity (ah): 850

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 3
Hydraulic internal hosing: Single
Sideshifter: Yes
Fork positioner: No
Fork lenght (in): 42
Non marking tires: Yes

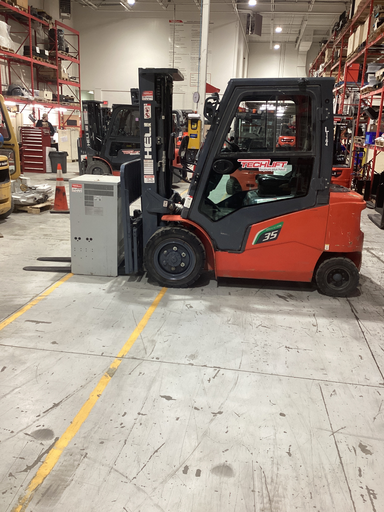

DESCRIPTION:
Make: HELI
Model: CPD35-GB2LI-M
Serial: 05035DH5403
Unit number: L-1164
Model year: 2022
Capacity (lbs): 7000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 185.0
Lowered mast height (in): 88.0
Free lift (in): 39.4

TIRES:
Pneumatic on drive wheels 28X9X15
Pneumatic on steering wheels 200/50-10

DIMENSIONS:
Overall lenght (in): 101.3
Overall width (in): 48.2
Overhead guard height (in): 85.8
Groud clearance from chassis (in): 5.1
Outside turning radius (in exterior): 87.2

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lithium
System voltage: 80
Battery capacity (ah): 542
On-board charger 110V/220V: No

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: Yes
Fork lenght (in): 48
Solid pneumatic tires: Yes
Steel cab with heater and wiper: Yes

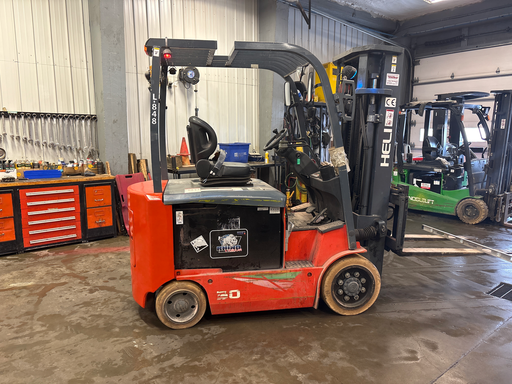

DESCRIPTION:
Make: HELI
Model: CPD30-GA2C
Serial: 05030DB9501
Unit number: L-848
Model year: 2018
Capacity (lbs): 6000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 189.0
Lowered mast height (in): 90.0
Free lift (in): 46.0

TIRES:
Pneumatic on drive wheels 21X8X15
Pneumatic on steering wheels 16X6X10.5

DIMENSIONS:
Overall lenght (in): 91.4
Overall width (in): 44.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.7
Outside turning radius (in exterior): 79.6

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lead-acid
System voltage: 48
Battery capacity (ah): 935

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: No
Fork lenght (in): 48
Non marking tires: Yes

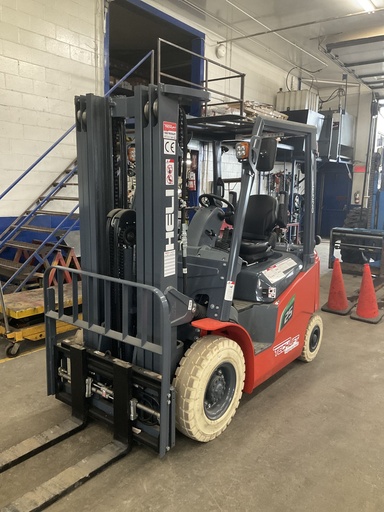

DESCRIPTION:
Make: HELI
Model: CPD25-GB2LI-M
Serial: 05025DG4743
Unit number: L-1220
Model year: 2022
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 3 stages
Maximum forks height (in): 185.0
Lowered mast height (in): 85.0
Free lift (in): 45.7

TIRES:
Pneumatic on drive wheels 700X12
Pneumatic on steering wheels 18X7-8

DIMENSIONS:
Overall lenght (in): 95.7
Overall width (in): 45.7
Overhead guard height (in): 85.4
Groud clearance from chassis (in): 4.5
Outside turning radius (in exterior): 81.5

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lithium
System voltage: 80
Battery capacity (ah): 271
On-board charger 110V/220V: No

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 4
Hydraulic internal hosing: Double
Sideshifter: Yes
Fork positioner: Yes
Fork lenght (in): 42
Solid pneumatic tires non marking Yes
Steel cab with heater and wiper No

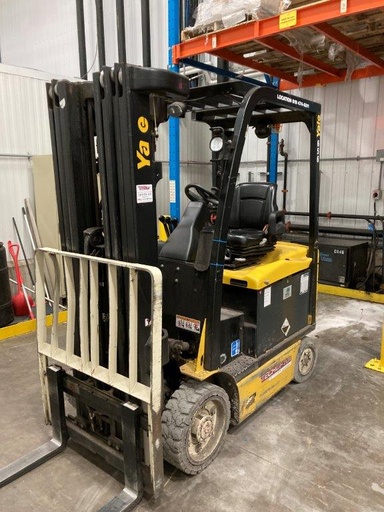

DESCRIPTION:
Make: YALE
Model: ERC050VGN48TQ088
Serial: A968N17763R
Unit number: L-656
Model year: 2017
Capacity (lbs): 5000
State: Used

MAST:
Mast type, wideview 4 stages
Maximum forks height (in): 252.0
Lowered mast height (in): 88.0
Free lift (in): 39.0

TIRES:
Pneumatic on drive wheels 21X7X15
Pneumatic on steering wheels 16X5X10.5

DIMENSIONS:
Overall lenght (in): 84.3
Overall width (in): 42.0
Overhead guard height (in): 88.5
Groud clearance from chassis (in): 3.6
Outside turning radius (in exterior): 74.2

ELECTRICAL SYSTEM:
Motors type: AC
Controllers brand: ZAPI
Battery type: Lead-acid
System voltage: 48
Battery capacity (ah): 850

STANDARD EQUIPEMENTS
On-board diagnostic system
Automatic battery regen
Electric power steering
Mast tilt cylinderss
Load backrest
Adjustable steering column
Back-up alarm
Rearview mirror
Amber safety strobe light
LED working lights
Rear grab handle with horn button
Full suspension seat
Electronic speed limiter
Proctections covers on tilts and steering cylinders
Steering wheel spining ball

INCLUDED OPTIONAL EQUIPMENTS
Hydraulic functions: 3
Hydraulic internal hosing: Single
Sideshifter: Yes
Fork positioner: No
Fork lenght (in): 42
Non marking tires: Yes

Statut: Used
Internal Reference: 5642142-2002
Brand: HELI
Model: CPD25-GD2P
Lot/Serial Number: 05025DF6284
Year: 2022
Capacity: 5000

MAST
Mast: 3 sections
Max Lifting Height (ref): 212.5
Classe de tablier: 2
Lowered Mast Height (ref): 95.5

HYDRAULICS AND ATTACHMENTS
Attachment: Déplacement latéral intégral
Hyd. Functions: 4
Dimensions des fourches (Longueur X Largeur X Épaisseur): 42

WHEELS
Pneus non-marquants: Non
Dimensions pneus avants: 225/75-10 (23x9-10)
Dimensions pneus arrières: 18x7-8

ENERGY
Energy: Plomb & acide
Output voltage: 48V

CHASSIS
Cabin: Cabine complète en acier avec essuie-glace et chaufferette
Operator Roof Height: 86.0
Length: 87.0
Width: 46.0
Weight: 11000.0

ACCESSORIES
Groupe lumières: Oui
Lumière bleue: Oui, avant et arrière
Lumière rouge côté: Non
Gyrophare: Oui
Siège, suspension: Semi-suspension
